High Technology Inspection Services

3-D CNC, Inc. can assist you in precision technology inspection measurement services. We are fully equipped to offer open layout inspection services, vision system inspection services, and coordinate measuring machine dimensional inspection services.

Send us your parts, and we can present to you fully documented inspection reports to your specifications. Our capabilities can accurately measure down to +/- .00002.”

Please give a 3-D CNC representative a call to discuss your requirements. We are eager to serve you.

Inspection Measurement Services Capabilities

Open layout inspection servicesVision measuring system inspection servicesCoordinate measuring machine system inspection services

View our  Quality Assurance/ISO and  Inspection Equipment.

What are open layout inspection services? (CMM)

Layout inspection is equivalent to First Article Inspection in which EVERY dimension , characteristic and attribute listed on the print is inspected . Often, this inspection is done with multiple instruments which may include, Gage Pins, Micrometer, Electr onic Height Gage , Coordina te Measuring Machines and Vision measu ring systems . Verification of service ( Material , Heat Treat, Plating , etc. ) is verified via the use of the certificates provided by service vendor.

What are vision measuring system inspection services? (CMM)

A Vision measuring system is a Non – contact dimensional measurement system that provide s data that is not otherwise attainable in a reasonable amount of time. One of the vision system s that 3 – D CNC, Inc. uses include s is the OGP SmartScope® Flash™ 302 . Th e Flash is one of the most versatile benchtop systems OGP offers. With an expansive Z – axis of 250 mm (10 in.) to accommodate large parts, it combines state – of – the – art video and autofocus to deliver high p roductivity.

What is a Coordinate Measuring Machine? (CMM)

A Coordinate Measuring Machine or CMM is a device for measuring the physical geometrical characteristics of an object. This machine may be manually controlled by an operator or it may be computer controlled. Measurements are defined by a probe attached to the moving axis of the machine. The probe touches the part of interest and allows collecting discrete points on the object’s surface.

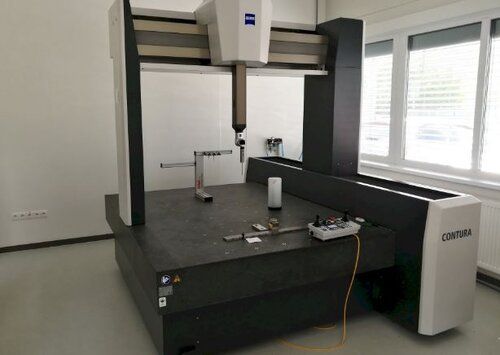

The typical CMM is composed of three axes, an X, Y and Z. These axes are orthogonal to each other in a typical three dimensional coordinate system. Each axis has a very accurate scale system that indicates the location of that axis. All three axes are displayed on a digital readout. The probe is used to touch different spots on the part being measured. The machine then uses the X,Y,Z coordinates of each of these points to determine size and position. Newer models like the Zeiss Prismo CMM at 3-D CNC, Inc. have probes that drag along the surface of the part taking points at specified intervals. This method of CMM inspection is more accurate than the conventional touch-probe method and most times faster as well.
